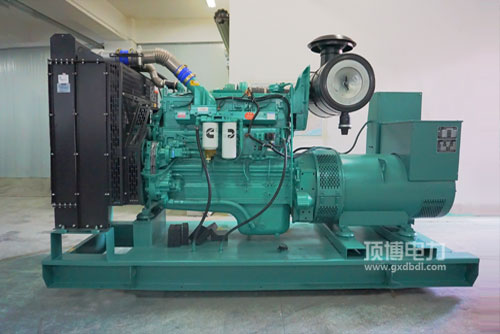

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用汽车发倾向汽油资金性好: 先进典型的汽油抑制操作机系统，别具一格 的STC、ESTC 分类抑制操作机系统，个性化定制的气缸顶面丙烷发动机然烧室，压力发射汽油，能够充分的做雾化，丙烷然烧能够充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打着机瞬态能非常好: 无极限的打着机总体方案，匹配康明斯有趣的EFC模式，的控制高精较高，回复时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用起思想升瓦数高: 产品设汁紧奏型.外观简约时尚摆置合理化，运转顺畅。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50实现全国非道路交通第三步一阶段及美国Tier2. Tier 3废气法律规定需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件都有机会得到性好， 发起机程序运行及保护维护便捷，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出範圍 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外型大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯并网发电用启心理的优势：密度小， 缩短变高， 网格板气体微波加热，最易重启，运动车载式电原的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机应用	经常用输出功率(kW)Prime Power	预留工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
